Planetery ball mill machine General Introduction:
(Oil seal mute)Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanometer, R&D of new product and small batch production for high tech materials.
The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,entire laboratory.
The samples could be ground under vacuum state with using the vacuum ball mill jars.
It is widely used in geology,mineral,metallurgy,electronic,building material,ceramic,
chemical,light industry,medicine,beauty,environment production,tea and so on.
According to the processing requirement to set the rotation speed and alternate time of forward and reversal rotation and set the total grinding time.
Mill jars and balls:
Our factory can provide 304 stainless steel jar, Tungsten carbide jar(YG8),
ceramic jar / corundum jar/ alumina jar, zirconia jar, agate jar. nylon jar, PU jar,
PTFE jar. We can also provide the ball material of stainless steel, ceramic,
corundum, alumina, zirconia, agate, tungsten carbide.
1.Material of ball mill jar:
2) Special ball mill jar for vacuum/inert gases protection:
3) Material of grinding ball:
Examples of milling tasks:
Details:
Installed picture of each material ball mill jar :

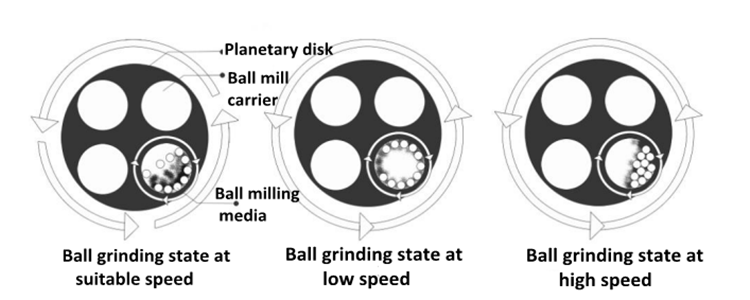

El molino de bolas planetario tiene cuatro tanques de molienda de bolas instalados en una mesa giratoria. Cuando la mesa gir
El eje del tanque hace movimientos planet, las bolas y muestras dentro de los frasse impacfuertemente en alto
Velocidad de movimiento, y las muestras son finalmente molidas en polvo. El molino de bolas puede utilizar para seco y húmedo
Molienda y también puede mezclar productos de diferentes granuly materiales.
Modo de trabajo: dos o cuatro tarros de molienda de bolas trabajando al mismo tiempo y la cantidad máxima de carga de la muestra:
Volumen de la jarra de molienda de bolas 2/3, granularidad de alimentación: material del suelo − 10mm otro material − 3mm granularidad de descarga:
El mínimo puede llegar hasta 0.1um (es decir, 1.0 *10mm-4)
| Model | Power | Voltage KW | frequency conversion power KW | Ball mil l Jar | Vacuum Jar | Rotation Speed r/min | Noise ≤db(A) | |
| Revolution (adjustable) | Rotation (adjustable) | |||||||
| JHMB0.4L | 220V 50HZ | 0.55 | 0.4 | 100ml | no | 30-450 | 60-900 | ≤60db |
| JHMB-1L | 220V 50HZ | 0.75 | 0.55 | 250ml | 100ml | 30-450 | 60-900 | ≤60db |
| JHMB-2L | 220V 50HZ | 1.1 | 0.75 | 500ml | 250ml | 30-400 | 60-800 | ≤60db |
| JHMB-4L | 220V 50HZ | 1.1 | 0.75 | 1L | 500ml | 30-400 | 60-800 | ≤60db |
| JHMB-8L | 220V 50HZ | 1.5 | 1.5 | 2L | 2L | 30-280 | 60-560 | ≤60db |
| JHMB-12L | 380V 50HZ | 1.5 | 2.2 | 3L | 3L | 30-260 | 60-520 | ≤60db |
| JHMB-16L | 380V 51HZ | 3 | 4 | 4L | 4L | 30-230 | 60-460 | ≤60db |
| JHMB-20L | 380V 52HZ | 3 | 4 | 5L | 5L | 30-230 | 60-460 | ≤60db |
| JHMB-40L | 380V 53HZ | 3 | 4 | 10L | 10L | 30-180 | 60-360 | ≤90db |
| JHMB-60L | 380V 54HZ | 4 | 5.5 | 15L | 15L | 30-170 | 60-340 | ≤90db |
| JHMB-80L | 380V 55HZ | 7.5 | 7.5 | 20L | 20L | 30-160 | 60-320 | ≤90db |
